Glass Insulator for Butao–Ordos 500kV Transmission Line Project
The Butao–Ordos 500kV Transmission Line Project is a supporting power-delivery project for the national Kubuqi Desert 4GW wind-solar base. With a total line length of 132.1 km, the project mainly adopts a double-circuit configuration on the same tower.
Starting from the Butao 500kV Substation and connecting to the Ordos 1000kV UHV Substation, the transmission line delivers renewable energy into the UHV transmission network and supports the efficient utilization of large-scale wind and solar power.
Located in a desert and windy environment, the transmission line is exposed to wind, sand, dust and outdoor pollution. These conditions place higher requirements on the long-term performance of transmission line insulators.
For a 500kV transmission system, the insulation solution needs to provide reliable electrical insulation and mechanical strength while maintaining stable performance under harsh outdoor conditions.
The key requirements include:
- High-voltage insulation performance
- Reliable mechanical strength
- Good pollution resistance
- Resistance to wind and sand exposure
- Long-term outdoor durability

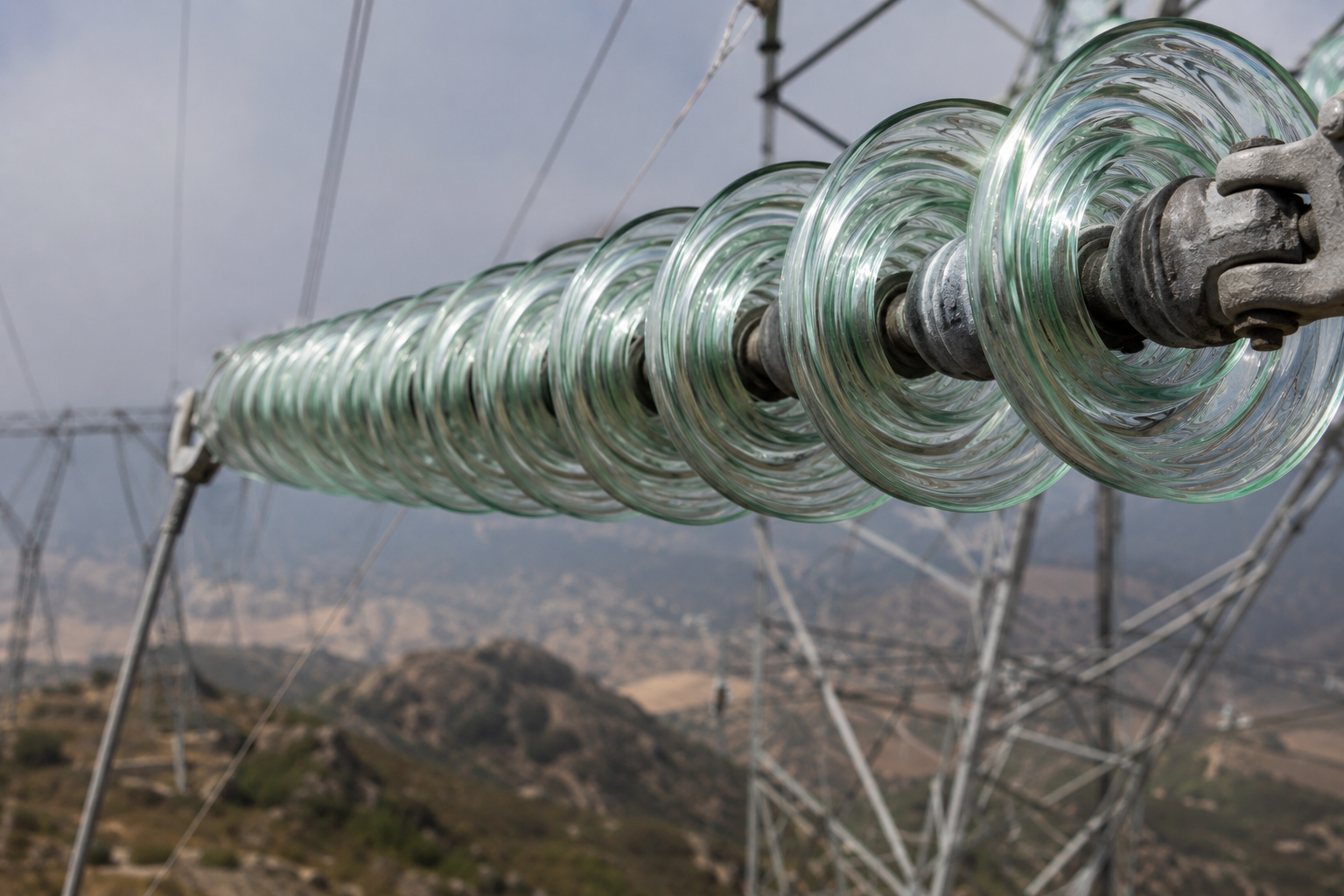

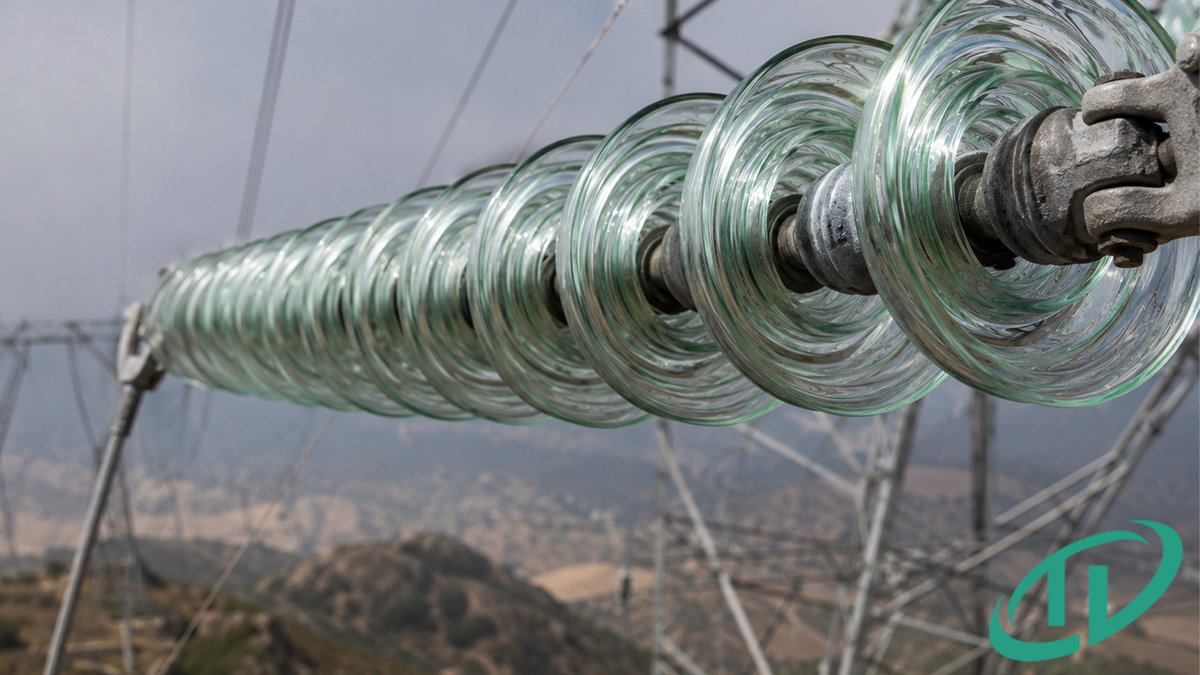

Toughened glass insulators are an important part of the overhead transmission insulation system. They provide electrical insulation between the conductors and grounded towers while also supporting the mechanical loads of the transmission line.
For desert transmission projects, the selection of a suitable glass insulator should take into consideration the local environmental conditions, pollution level, voltage requirements and mechanical load.
The glass insulator solution for this type of application is designed to support stable transmission performance under demanding desert conditions.
The Butao–Ordos project connects renewable energy generation with the high-voltage transmission network, helping deliver electricity generated from the Kubuqi Desert wind and solar base to the wider power grid.
As renewable energy projects continue to expand into remote areas, reliable transmission equipment is increasingly important. High-quality glass insulators for power transmission provide essential electrical insulation and mechanical support for these long-distance transmission lines.
| Item | Details |
|---|---|
| Project | Butao–Ordos 500kV Transmission Line |
| Voltage | 500kV |
| Line Length | 132.1 km |
| Configuration | Double-circuit on the same tower |
| Environment | Desert & windy area |
| Application | Renewable energy transmission |
| Key Product | Toughened Glass Insulator |
With experience in manufacturing toughened glass insulators for high-voltage transmission, Tailun Electric provides insulation solutions for transmission projects with different voltage levels, mechanical load requirements and environmental conditions.
From renewable energy transmission to conventional power grids, our glass insulators are designed to provide reliable electrical and mechanical performance for long-term outdoor applications.
Looking for glass insulators for your transmission project?
Contact Tailun Electric to discuss your voltage level, mechanical requirements and operating environment.
